ON-LOOM REED CLEANER (TR-7600RC)
Demonstration video of TR-7600RC ON-LOOM REED CLEANER
The TR-7600RC ON-LOOM REED CLEANER cleans the reed with the warp still drawn in. It automatically runs along the top of the reed as it cleans.
Characteristics of ON-LOOM REED CLEANER
This product cleans the reed with the warp still drawn in. It automatically runs along the top of the reed as it cleans.
Previous versions of this device required an electrical power source, but our newest version is a battery-powered, re-chargeable product, allowing for cordless, easier cleaning.
Debris build up in the tunnel groove can affect air flow, but is effectively removed with special brushes, contributing to stable loom operation.
This cleaner can be preset for automatic stopping.

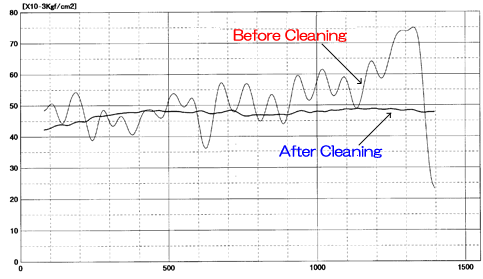

Changes of Air flow before use and after use of ON-LOOM REED CLEANER
Specification
Name
TR-7600RC
Use
Rotating Brush Type : Moving along tunnel groove, left and right repeatedly.
Applicable Air Jet Loom Makers
All AJL makers : Brush position adjustment is possible
Rotating Brush Component
Speed : 1600 rpm (right and left reversible spin)
Traveling Speed
Approximately 50 cm/min
Setting of Repeating Time
By control knob
Display
Repeating time / Setting time
Power Source
Time required for full recharged
Max. Cleaning time at full recharged
Dimensions
Weight
Rechargeable : 100V – 240 V Single Phase
About 8 hours
About 8 hours
210 mm ×160 mm × 113 mm
2.5 kg
